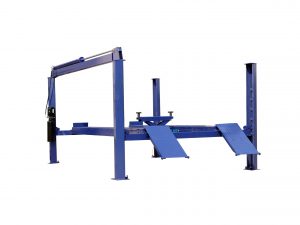

FOUR POST ALIGNMENT LIFT

FP14KO-A

Four Post ALIGNMENT lift

  • 14,000 lbs Capacity
  • Open Front
  • Alignment Capable
  • 208” max two wheel Alignment
  • Cable Driven
  • Single Point Pneumatic Lock Release
  • Adjustable Locking Positions
  • Slack Cable Safety
  • No Overhead Obstructions
  • Powder Coat Finish
  • Turntables and Jacks Sold Separately
Category:

Specifications

Lift Model FP14KO-A
Capacity 14,000 lbs.
Overall Length w/Ramp 291″
Overall Width (Outside Base Plates) 139″
Lifting Height 73″
Width Between Posts 116″
Width Between Runways 43″
Width of Runways 19″
Column Height 92″ / 86″
Max. Wheel Base (2 wheel) 208″
Max. Wheel Base (4 wheel) 158″
Ramp Length 42″
Max. Clearance under Track 64″
Cable Diameter 7/16″
Base Plate Dimensions 18″ x 19″ / 12″ x 12″
Ship Weight 4,160 lbs
Power 220V – 20 Amp – 1PH

Accessories


RAJ-6K (L)

  • RAJ-8K (L)

  • TURNTABLE-305811W
