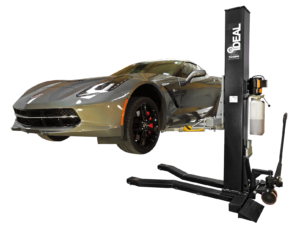

MOBILE SINGLE COLUMN LIFT
iDEAL / iMOBILE - MSC-6KLP
iDEAL, iMOBILE single column lift
- 6,000 lbs Capacity
- Low Profile Design under 4”
- Drive Over Ramps
- Portability
- Rigid Base Construction
- Single Point Lock Release
- Telescoping Two Stage Swing Arms
- Double Telescoping Screw Pads
- Stackable pad height extensions (2 sets of 4ea @ 2” & 4”)
- Heavy Duty Arm Restraints
- 21 Locking Positions
- Durable powder coat finish
Specifications
| Lift Model | MSC-6KLP |
| Capacity | 6,000 lbs |
| Width Overall | 45-3/16″ |
| Height Overall | 102-3/8″ |
| Depth / Length Overall | 101-9/16″ |
| Lift Rise Height | 72″ |
| Minimum Ceiling Height | 9′ |
| Swivel Pad Height (Adj.) | 3-15/16″ – 6-5/16″ |
| Platform Min. Height | NA |
| Main Side Arm Reach | 19-11/16″ – 26″ |
| Off Side Arm Reach | 24-5/8″ – 34″ |
| Drive Over Height | 3-15/16″ |
| Platform Frame | NA |
| Platform Aluminum Deck | NA |
| Platform Structure | NA |
| Ship Weight | 1,850 lbs |
| Power | 115V – 15 Amp 1Ph |
Video
Accessories
iDEAL – TP11DX-SPNCA (MSC-6KLP)
Additional Information
