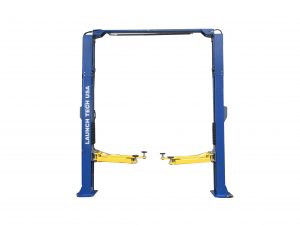

TWO POST CLEAR FLOOR

TP9KACX

Two Post Clear Floor

  • 9,000 lbs capacity
  • ASymmetric Arms
  • Rubber Door Guards
  • Chain Drive Cylinders
  • Dual Point Lock Release
  • Auto Arm Restraint System
  • Single Piece Column
  • Internal Hose routing
  • Low profile Spin Up Lift Pads
  • Stackable Adapters Included
Category:

Specifications

Lift Model TP9KACX
Capacity 9,000 lbs.
Height Overall 142-7/8″
Width Overall w/ Power Unit 138″
Max Lift Height 72″
Width Between Columns 113-5/8″
Min. Pad Height 4″
Drive Thru Clearance 96″
Lifting Speed   50S
Asymmetric / Symmetric Asymmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach – min/max 29″-41″
Long Arm Reach – min/max 37″-57″
Narrow Bay Setting NA
Max Load Per Arm 2,250 lbs.
Ship Weight 1,370 lbs
Power 220V – 20 AMP – 1 PH

Flier
