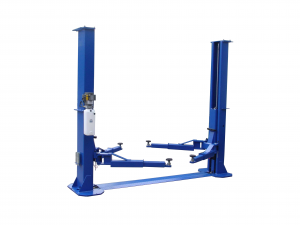

TWO POST FLOOR PLATE
TP9KFX
Two Post Floor Plate
- 9,000 lbs capacity
- Symmetric Arms
- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System
- Internal Hose routing
- Low profile Spin Up Lift Pads
- Stackable Adapters Included
Specifications
| Lift Model | TP9KFX |
| Capacity | 9,000 lbs. |
| Height Overall | 111-7/8″ |
| Width Overall w/ Power Unit | 134-58″ |
| Max Lift Height | 72″ |
| Width Between Columns | 110-3/8″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 101″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach – min/max | 31″-45″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,270 lbs |
| Power | 220V – 20 AMP – 1 PH |
