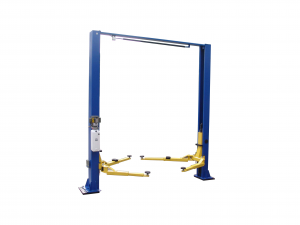

TWO POST CLEAR FLOOR
LAUNCH - TLT240SC-R
LAUNCH, Two Post Clear Floor
- 9,000 lbs Capacity
- Chain Drive
- Rubber Door Guards
- Hose Guards
- Dual Point Lock Release
- Heavy Duty Arm Restraint System
- Double Telescoping Screw Pads
- Adjustable Column Width
- Standard or Rotated Asymmetric Columns
- 3 Stage Front Arms
- Stackable Pad extensions
Specifications
| Lift Model | TLT240SC-R |
| Capacity | 9,000 lbs. |
| Height Overall | 151″ |
| Width Overall w/ Power Unit | Asymmetric: 140″ Symmetric: 134″ |
| Max Lift Height | 73″ |
| Width Between Columns | 108″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | Asymmetric: 95″ Symmetric: 98″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric/Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 23-5/8″-43-1/2″ |
| Long Arm Reach – min/max | 34″-54″ |
| Narrow Bay Setting | Deduct 5.9″ |
| Max Load Per Arm | 2,250 lbs |
| Ship Weight | 1,600 lbs |
| Power | 208-230V-60Hz.-1 PH |
